# Apache HBase

## Prerequisites

* Alluxio has been set up and is running.
* Make sure that the Alluxio client jar is available. This Alluxio client jar file can be found at `/<PATH_TO_ALLUXIO>/client/alluxio-2.7.0-2.8-client.jar` in the tarball downloaded from Alluxio [download page](https://www.alluxio.io/download).
* [Deploy HBase](https://hbase.apache.org/book.html#configuration) Please follow this guides for setting up HBase.

## Basic Setup

Apache HBase allows you to use Alluxio through a generic file system wrapper for the Hadoop file system. Therefore, the configuration of Alluxio is done mostly in HBase configuration files.

### Set property in `hbase-site.xml`

Set the following properties in `conf/hbase-site.xml` and make sure all HBase cluster nodes have the configuration.

Set the `hbase.rootdir` property as follows:

```xml
<property>
  <name>hbase.rootdir</name>
  <value>alluxio://master_hostname:port/hbase</value>
</property>
```

> You do not need to create the `/hbase` directory in Alluxio, HBase will do this for you.

You also need to add the FS implementation classes to HBase configuration. These classes are provided in Alluxio Client jar.

```xml
<property>
  <name>fs.alluxio.impl</name>
  <value>alluxio.hadoop.FileSystem</value>
</property>
<property>
  <name>fs.AbstractFileSystem.alluxio.impl</name>
  <value>alluxio.hadoop.AlluxioFileSystem</value>
</property>
```

Also add the following property to the same file `hbase-site.xml`:

```xml
<property>
  <name>hbase.regionserver.hlog.syncer.count</name>
  <value>1</value>
</property>
```

> This property is required to prevent HBase from flushing Alluxio file stream in a thread unsafe way.

If you are running HBase version greater than 2.0, add the following property:

```xml
<property>
  <name>hbase.unsafe.stream.capability.enforce</name>
  <value>false</value>
</property>
```

> This will disable HBase new stream capabilities (hflush/hsync) used for WAL.

### Distribute the Alluxio Client jar

We need to make the Alluxio client jar file available to HBase, because it contains the configured `alluxio.hadoop.FileSystem` class.

Specify the location of the jar file in the `$HBASE_CLASSPATH` environment variable (make sure it's available on all cluster nodes). For example:

```console
$ export HBASE_CLASSPATH=/<PATH_TO_ALLUXIO>/client/alluxio-2.7.0-2.8-client.jar:${HBASE_CLASSPATH}
```

Alternative ways are described in the [Advanced Setup](#advanced-setup)

## Example

Ensure alluxio scheme is recognized before starting HBase:

```console
$ ${HBASE_HOME}/bin/start-hbase.sh
```

If not, follow the [Usage FAQs](../../operations/troubleshooting#usage-faq) as needed.

Visit HBase Web UI at `http://<HBASE_MASTER_HOSTNAME>:16010` to confirm that HBase is running on Alluxio (check the `HBase Root Directory` attribute):

<figure><img src="https://1793983847-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGeffGGmwrYFLzhXkLOLn%2Fuploads%2Fgit-blob-7afa112173569f011f4f24e304188a189ad743d1%2Fscreenshot_start_hbase_webui.png?alt=media" alt=""><figcaption></figcaption></figure>

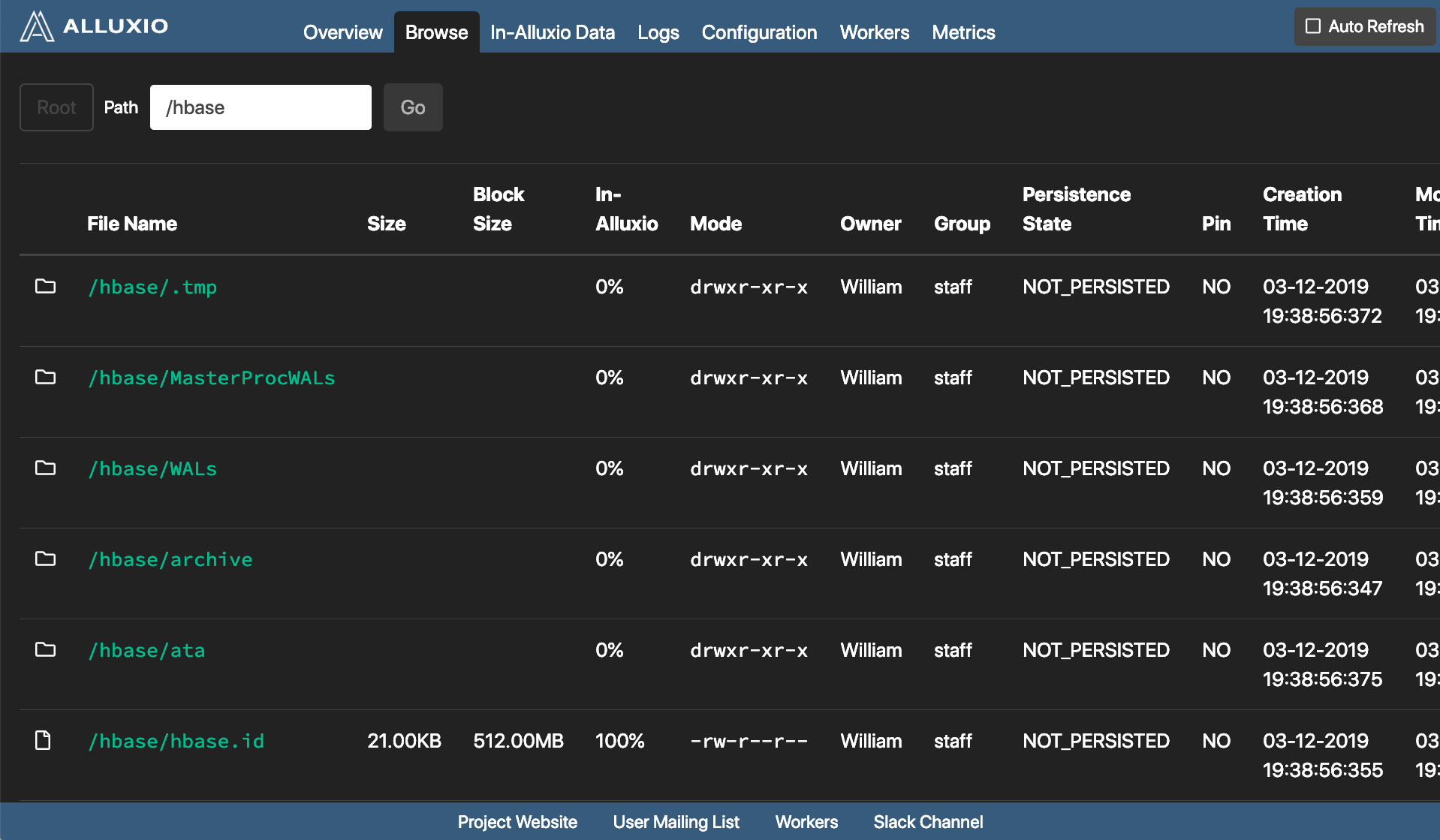

And visit Alluxio Web UI at `http://<ALLUXIO_MASTER_HOSTNAME>:19999`, click `Browse` and you can see the files HBase stores on Alluxio, including data and WALs:

<figure><img src="https://1793983847-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGeffGGmwrYFLzhXkLOLn%2Fuploads%2Fgit-blob-99711e978f7bdd893592254dc5e5baba9ae1d111%2Fscreenshot_start_hbase_alluxio_webui.png?alt=media" alt=""><figcaption></figcaption></figure>

Create a text file `simple_test.txt` and write these commands into it:

```
create 'test', 'cf'
for i in Array(0..9999)
 put 'test', 'row'+i.to_s , 'cf:a', 'value'+i.to_s
end
list 'test'
scan 'test', {LIMIT => 10, STARTROW => 'row1'}
get 'test', 'row1'
```

Run the following command from the top level HBase project directory:

```console
$ bin/hbase shell simple_test.txt
```

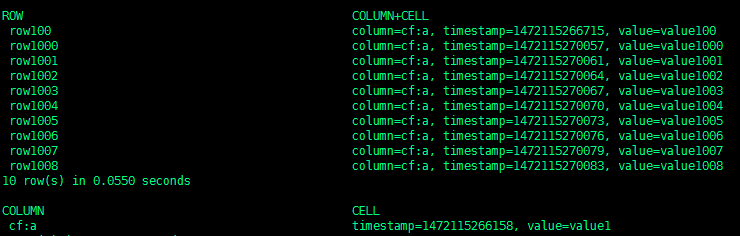

You should see some output like this:

<figure><img src="https://1793983847-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGeffGGmwrYFLzhXkLOLn%2Fuploads%2Fgit-blob-34b9bd912f23353d686caffcdb7577636e4af931%2Fscreenshot_hbase_shell_output.png?alt=media" alt=""><figcaption></figcaption></figure>

If you have Hadoop installed, you can run a Hadoop-utility program in HBase shell to count the rows of the newly created table:

```console
$ bin/hbase org.apache.hadoop.hbase.mapreduce.RowCounter test
```

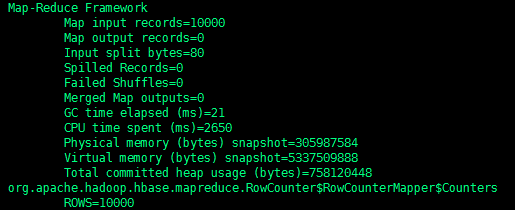

After this mapreduce job finishes, you can see a result like this:

<figure><img src="https://1793983847-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGeffGGmwrYFLzhXkLOLn%2Fuploads%2Fgit-blob-a0d934b3c18dd60346f47b590829e78b94d8fb97%2Fscreenshot_hbase_hadoop_output.png?alt=media" alt=""><figcaption></figcaption></figure>

## Advanced Setup

### Alluxio in HA mode

When Alluxio is running in HA mode, change the `hbase.rootdir` property in `conf/hbase-site.xml` to use a HA-style Alluxio authority like `host1:19998,host2:19998,host3:19998` or `zk@host1:2181,host2:2181,host3:2181`.

```xml
<property>
  <name>hbase.rootdir</name>
  <value>alluxio://master_hostname_1:19998,master_hostname_2:19998,master_hostname_3:19998/hbase</value>
</property>
```

See [HA authority](../../install-alluxio/running-alluxio-on-a-ha-cluster#ha-authority) for more details.

### Add additional Alluxio site properties to HBase

If there are any Alluxio site properties you want to specify for HBase, add those to `hbase-site.xml`. For example,

change `alluxio.user.file.writetype.default` from default `MUST_CACHE` to `CACHE_THROUGH`:

```xml
<property>
  <name>alluxio.user.file.writetype.default</name>
  <value>CACHE_THROUGH</value>
</property>
```

### Alternative way to distribute the Alluxio Client jar

Instead of specifying the location of the jar file in the `$HBASE_CLASSPATH` environment variable, users could copy the `/<PATH_TO_ALLUXIO>/client/alluxio-2.7.0-2.8-client.jar` file into the `lib` directory of HBase (make sure it's available on all cluster nodes).

```console
$ cp `/<PATH_TO_ALLUXIO>/client/alluxio-2.7.0-2.8-client.jar` /path/to/hbase-master/lib/
$ cp `/<PATH_TO_ALLUXIO>/client/alluxio-2.7.0-2.8-client.jar` /path/to/current/hbase-client/lib/
$ cp `/<PATH_TO_ALLUXIO>/client/alluxio-2.7.0-2.8-client.jar` /path/to/hbase-regionserver/lib/
```

## Troubleshooting

### Logging Configuration

In order to change the logging configuration for HBase, you can [modify your installation's `log4j.properties` file.](http://hbase.apache.org/0.94/book/trouble.client.html#trouble.client.scarylogs)
