# Monitoring and Metrics Metrics provide insight into what is going on in the cluster. They are an invaluable resource for monitoring and debugging. Alluxio has a configurable metrics system based on the [Prometheus Official Metrics Library](https://github.com/prometheus/client_java). The metrics system exposes metrics in Prometheus exposition format. Alluxio’s metrics are partitioned into different instances corresponding to Alluxio components. The following instances are currently supported: * Coordinator: The Alluxio coordinator process * Worker: The Alluxio worker process * FUSE process: The Alluxio FUSE process ## Usage Send an HTTP request to `/metrics/` of the target Alluxio processes and get a snapshot of all metrics. ```shell # Get the metrics from Alluxio processes $ curl :/metrics/ $ curl :/metrics/ $ curl :/metrics/ ``` For example, for the local processes: ```shell # Get the local coordinator metrics with its default web port 19999 $ curl 127.0.0.1:19999/metrics/ # Get the local worker metrics with its default web port 30000 $ curl 127.0.0.1:30000/metrics/ # Get the local fuse metrics with its default web port 49999 $ curl 127.0.0.1:49999/metrics/ ``` Refer to [Metrics](/ee-ai-en/ai-3.6/reference/metrics.md) for more details of the exported metrics. ## Integration ### Kubernetes Operator The operator supports building a cluster with bundled Prometheus and Grafana. By default, both Prometheus and Grafana are enabled. Grafana can be disabled by setting its `enabled` field to be false. Prometheus cannot be disabled. The configuration and the Grafana template are already included. Just set the following switch in the `AlluxioCluster` configuration: ```yaml apiVersion: k8s-operator.alluxio.com/v1 kind: AlluxioCluster spec: grafana: enabled: false ``` ### Grafana Grafana is a metrics analytics and visualization software used for visualizing time series data. You can use Grafana to better visualize the various metrics that Alluxio collects. The software allows users to more easily see changes in memory, storage, and completed operations in Alluxio. Grafana supports visualizing data from Prometheus. The following steps can help you to build your Alluxio monitoring based on Grafana and Prometheus easily. 1. Download the Grafana template JSON file for Alluxio: [alluxio-ai-dashboard-template.json](https://alluxio-binaries.s3.amazonaws.com/artifactsBundle/ee/AI-3.6-12.0.0/alluxio-ai-dashboard-template.json) 2. Import the template JSON file to create a dashboard. See this [example](https://grafana.com/docs/grafana/latest/dashboards/export-import/#importing-a-dashboard) for importing a dashboard. 3. Add the Prometheus data source to Grafana with a custom name, ex. *prometheus-alluxio*. Refer to the [tutorial](https://grafana.com/docs/grafana/latest/datasources/add-a-data-source/#add-a-data-source) for help on importing a dashboard. If your Grafana dashboard appears like the screenshot below, you have built your monitoring successfully.

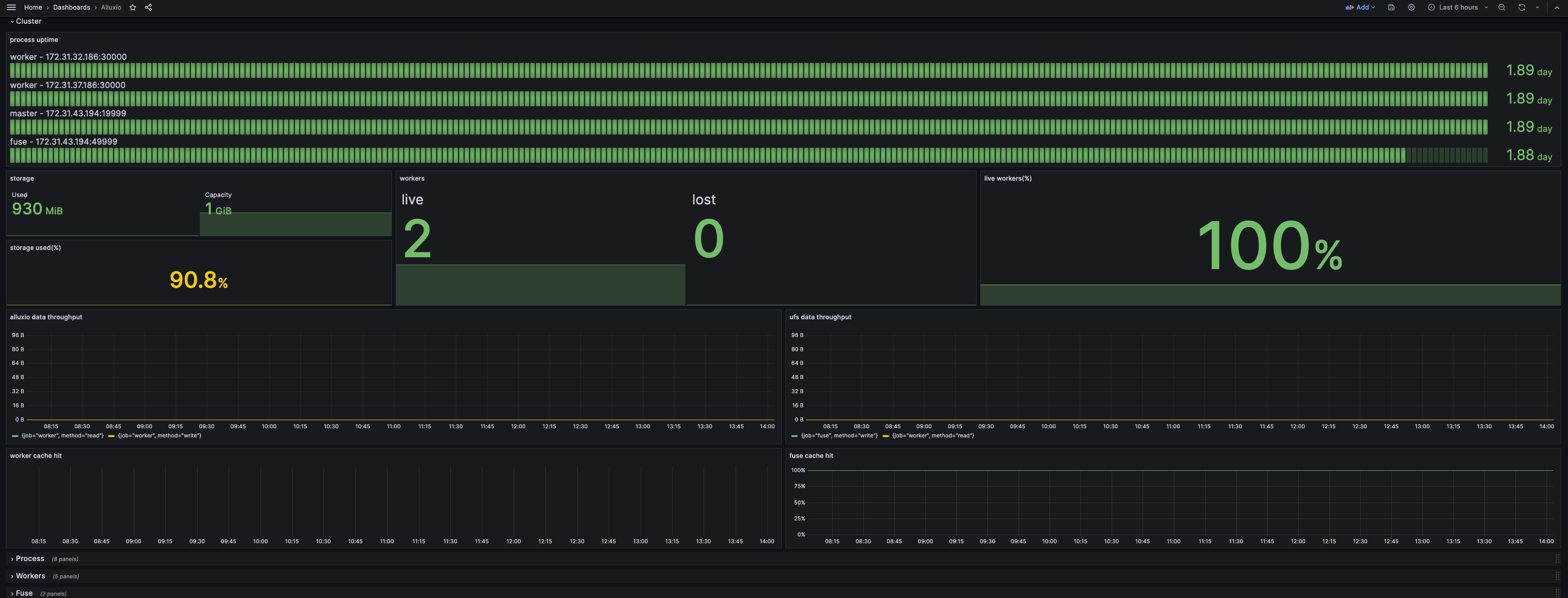

By default, only the *Cluster* row is unfolded, to show the abstract of the current status. The *Process* row shows the resource consumption and JVM-related metrics, which can be filtered by either services or instances at the top. The other rows show the details of certain components and can be filtered by instances. #### Accessing Grafana via Node Hostname The Grafana will expose its service on the 8080 port on its host. Use kubectl to get the hostname: ```shell kubectl -n alx-ns get pod $(kubectl -n alx-ns get pod -l app.kubernetes.io/component=grafana --no-headers -o custom-columns=:metadata.name) -o jsonpath='{.spec.nodeName}' ``` Assume the hostname is `foo.kubernetes.org`, then you can access the Grafana service on: ``` http://foo.kubernetes.org:8080/ ``` #### Accessing Grafana via Port Forwarding If you are unable to access Grafana directly through the node's hostname due to network issues, you can use port forwarding to map Grafana's port to your local machine, allowing you to access it locally. Run the following `kubectl port-forward` command to set up port forwarding: ```console kubectl -n alx-ns port-forward $(kubectl -n alx-ns get pod -l app.kubernetes.io/component=grafana -o jsonpath="{.items[0].metadata.name}") 3000:3000 ``` You can then access the Grafana service locally at: ``` http://localhost:3000 ``` ### Prometheus If launching an independent Prometheus service, refer to the following `prometheus.yml` to scrape the metrics. Note that `job_name` should not be changed to be compatible with built-in Grafana dashboard. ```yaml global: scrape_interval: 60s scrape_configs: - job_name: "prometheus" static_configs: - targets: [ 'localhost:9090' ] - job_name: "coordinator" static_configs: - targets: [ ':' ] - job_name: "worker" static_configs: - targets: [ ':' ] - job_name: "fuse" static_configs: - targets: [ ':' ] ``` If launching an independent Prometheus service in Kubernetes, refer to the following snippet to additionally extract pod annotations from the Kubernetes environment. ```yaml scrape_configs: - job_name: 'prometheus' kubernetes_sd_configs: - role: pod namespaces: names: - default tls_config: insecure_skip_verify: true relabel_configs: - source_labels: [__meta_kubernetes_pod_label_app_kubernetes_io_instance] action: keep regex: (?:alluxio) - source_labels: [__meta_kubernetes_pod_label_app_kubernetes_io_component] action: keep regex: prometheus - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape] action: keep regex: true - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path] action: replace target_label: __metrics_path__ regex: (.+) - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port] action: replace regex: ([^:]+)(?::\d+)?;(\d+) replacement: $1:$2 target_label: __address__ - action: labelmap regex: __meta_kubernetes_pod_label_(.+) - source_labels: [__meta_kubernetes_namespace] action: replace target_label: namespace - source_labels: [__meta_kubernetes_pod_name] action: replace target_label: pod_name - source_labels: [__meta_kubernetes_pod_node_name] action: replace target_label: node - source_labels: [__meta_kubernetes_pod_label_app_kubernetes_io_instance] action: replace target_label: cluster_name - job_name: 'coordinator' kubernetes_sd_configs: - role: pod namespaces: names: - default tls_config: insecure_skip_verify: true relabel_configs: - source_labels: [__meta_kubernetes_pod_label_app_kubernetes_io_instance] action: keep regex: (?:alluxio) - source_labels: [__meta_kubernetes_pod_label_app_kubernetes_io_component] action: keep regex: coordinator - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path] action: replace target_label: __metrics_path__ regex: (.+) - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port] action: replace regex: ([^:]+)(?::\d+)?;(\d+) replacement: $1:$2 target_label: __address__ - action: labelmap regex: __meta_kubernetes_pod_label_(.+) - source_labels: [__meta_kubernetes_namespace] action: replace target_label: namespace - source_labels: [__meta_kubernetes_pod_name] action: replace target_label: pod_name - source_labels: [__meta_kubernetes_pod_node_name] action: replace target_label: node - source_labels: [__meta_kubernetes_pod_label_app_kubernetes_io_instance] action: replace target_label: cluster_name - job_name: 'worker' kubernetes_sd_configs: - role: pod namespaces: names: - default tls_config: insecure_skip_verify: true relabel_configs: - source_labels: [__meta_kubernetes_pod_label_app_kubernetes_io_instance] action: keep regex: (?:alluxio) - source_labels: [__meta_kubernetes_pod_label_app_kubernetes_io_component] action: keep regex: worker - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape] action: keep regex: true - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path] action: replace target_label: __metrics_path__ regex: (.+) - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port] action: replace regex: ([^:]+)(?::\d+)?;(\d+) replacement: $1:$2 target_label: __address__ - action: labelmap regex: __meta_kubernetes_pod_label_(.+) - source_labels: [__meta_kubernetes_namespace] action: replace target_label: namespace - source_labels: [__meta_kubernetes_pod_name] action: replace target_label: pod_name - source_labels: [__meta_kubernetes_pod_node_name] action: replace target_label: node - source_labels: [__meta_kubernetes_pod_label_app_kubernetes_io_instance] action: replace target_label: cluster_name - job_name: 'fuse' kubernetes_sd_configs: - role: pod namespaces: names: - default tls_config: insecure_skip_verify: true relabel_configs: - source_labels: [__meta_kubernetes_pod_label_app_kubernetes_io_instance] action: keep regex: (?:alluxio) - source_labels: [__meta_kubernetes_pod_label_app_kubernetes_io_component] action: keep regex: (csi-)?fuse - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape] action: keep regex: true - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path] action: replace target_label: __metrics_path__ regex: (.+) - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port] action: replace regex: ([^:]+)(?::\d+)?;(\d+) replacement: $1:$2 target_label: __address__ - action: labelmap regex: __meta_kubernetes_pod_label_(.+) - source_labels: [__meta_kubernetes_namespace] action: replace target_label: namespace - source_labels: [__meta_kubernetes_pod_name] action: replace target_label: pod_name - source_labels: [__meta_kubernetes_pod_node_name] action: replace target_label: node - source_labels: [__meta_kubernetes_pod_label_app_kubernetes_io_instance] action: replace target_label: cluster_name ``` Again, note that `job_name` should not be changed to be compatible with built-in Grafana dashboard. The following metadata for the Prometheus pod is required: ```yaml labels: app.kubernetes.io/instance: alluxio # used to distinguish different alluxio cluster app.kubernetes.io/component: worker # values from operator deployment are coordinator, worker, fuse, and csi-fuse. depends on the pod annotations: prometheus.io/scrape: "true" # values should match with the port of the component. By default, it's 19999 for coordinator, 30000 for worker, and 49999 for fuse prometheus.io/port: "30000" prometheus.io/path: "/metrics/" ``` ### Datadog Alluxio emits metrics in the Prometheus format, which allows Datadog to directly integrate with Alluxio. 1. Ensure Datadog can access the ports listed in [Prometheus integration](#Prometheus) 2. Update Datadog configuration by adding multiple `prometheus_url` entries under the `instances` section in the configuration file Example configuration snippet for polling multiple sources: ```yaml instances: - prometheus_url: >:19999/metrics - prometheus_url: >:30000/metrics - prometheus_url: >:30000/metrics ... ``` By following these steps, Datadog can seamlessly collect and monitor Alluxio metrics, providing insights and visibility into your Alluxio cluster's performance and health. --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://documentation.alluxio.io/ee-ai-en/ai-3.6/start/monitoring-and-metrics.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
